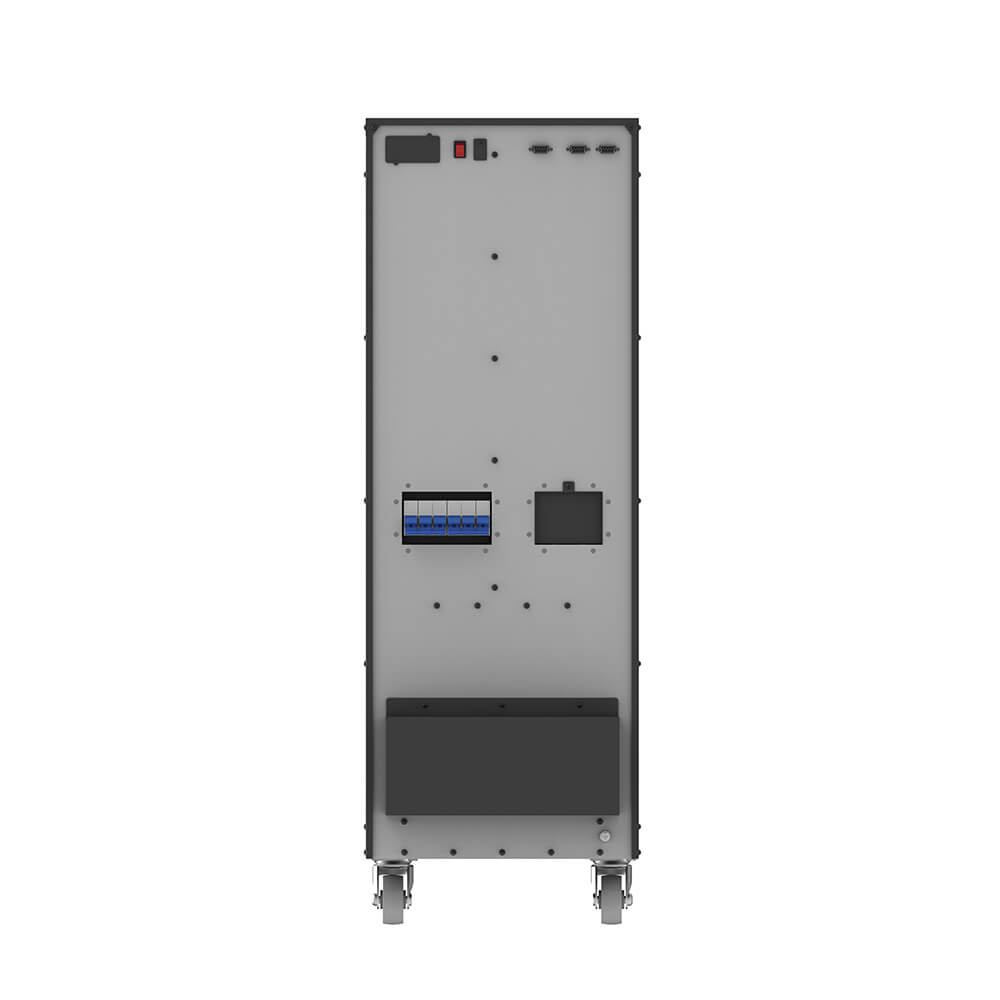

EH9335 Series High Frequency 3/3 Online UPS (10-80KVA)

The EH9335 series of 3/3 UPS adopts double-change online design, with input power factor correction (PFC), which makes the input power factor as high as 0.99. It has a high energy density ratio, which greatly reduces its own volume and floor space of the computer room. Using digital control, the system is highly stable, with selfprotection and fault diagnosis capabilities. This series of UPS can better solve power supply problems such as instantaneous voltage drop, damping oscillation, high voltage pulse, surge voltage, harmonic distortion, clutter interference, and frequency fluctuation for users.

Features:

Double conversion high frequency online design
With input power factor correction (PFC)
With LCD and LED dual display
With emergency shutdown (EPO) button interface
With RS232 communication interface and SNMP (optional) card

Get Pricing/Info

Double conversion high frequency online design.
Using digital control, the system is more stable.
With input power factor correction (PFC), the input power factor is 0.99.
The number of battery cells can be set according to user needs: ±16/17/18/19/20 cells.
With parallel interface, 4 units can be paralleled, and battery packs can be shared in parallel.
The charging current can be set, and the three-stage charging management of constant voltage, constant current, and floating charge can be automatically switched.
With LCD and LED dual display, users can intuitively understand the working status and parameters of the UPS.
With a maintenance bypass switch, which can be maintained when the power is uninterrupted.
The output load capacity is strong, which can adapt to the unbalanced three-phase load.
With RS232 communication interface and SNMP (optional) card.
With emergency shutdown (EPO) button interface, in an emergency, press the EPO button to emergency shutdown.

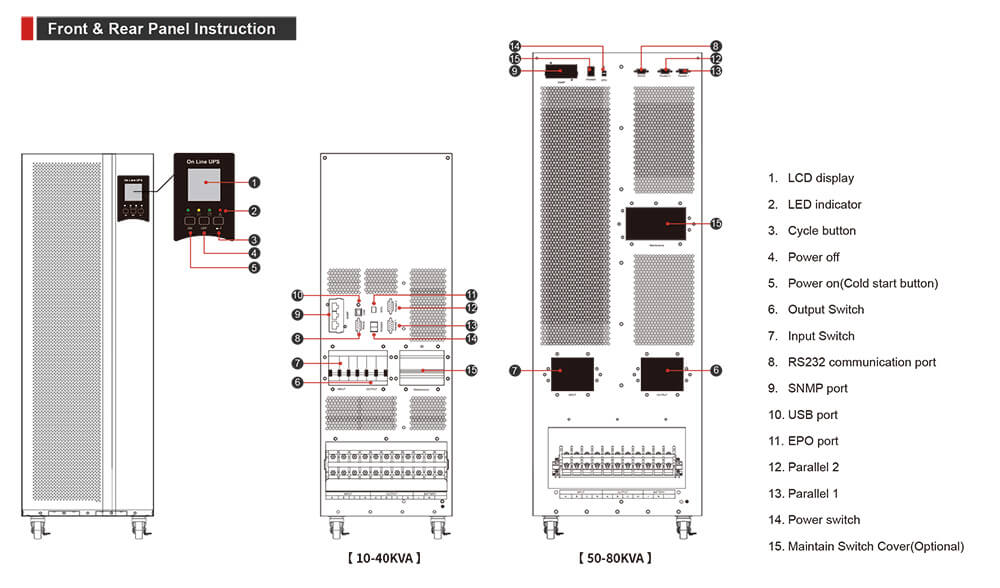

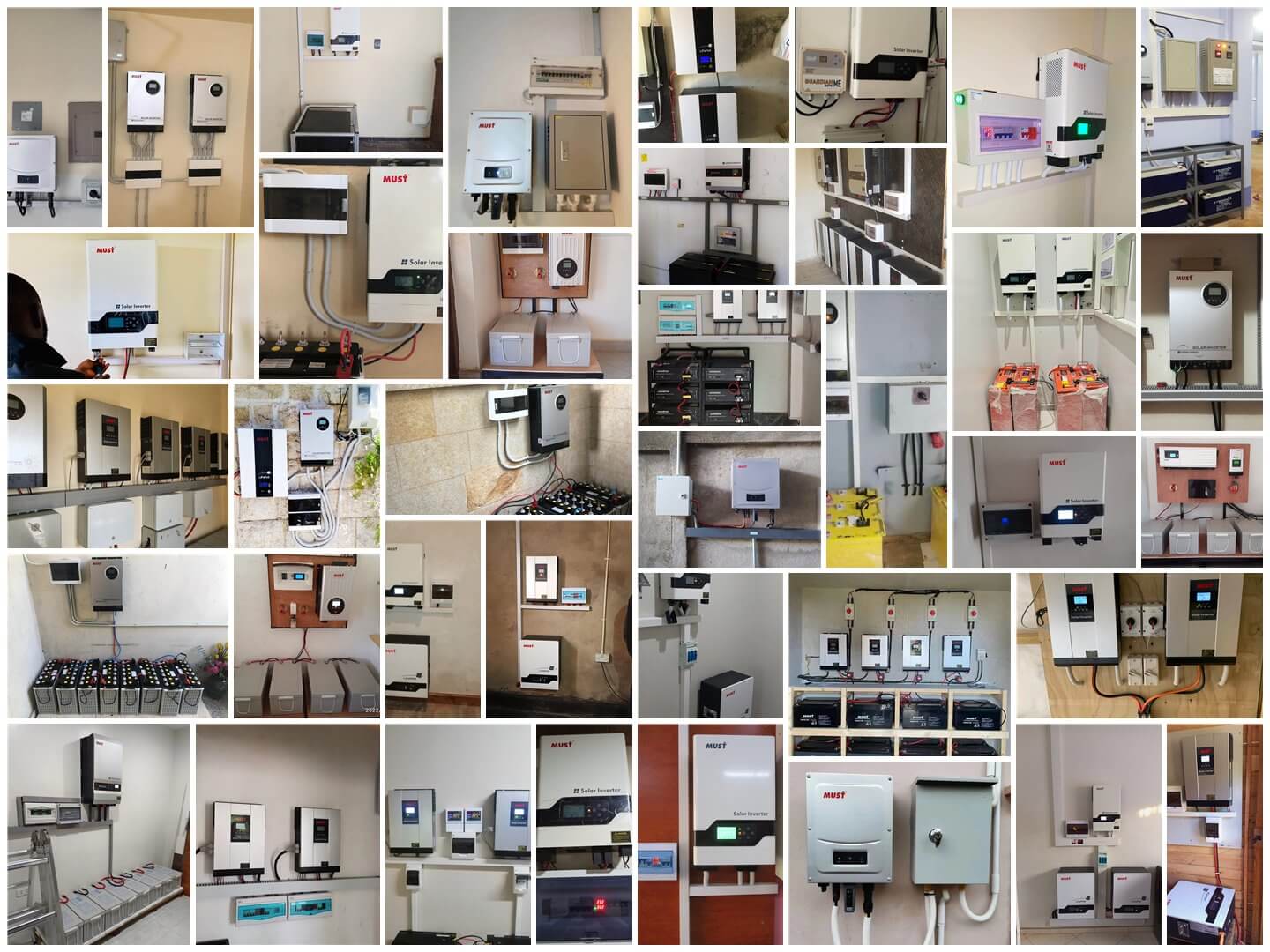

↓↓↓Installation Portfolio————

MUSTENERGY

Visits: 3

Model	EH9335- 10KS	EH9335- 20KS	EH9335- 30KS	EH9335- 40KS	EH9335- 60KS	EH9335- 80KS	EH9335- 10K	EH9335- 20K	EH9335- 30K	EH9335- 40K
Capacity
Rated capacity	10KAVA/9KW	20KVA/18KW	30KVA/27KW	40KVA/32KW	60KVA/54KW	80KVA/64KW	10KVA/9KW	20KVA/18KW	30KVA/27KW	40KVA/32KW
Input
Input format	Three-phase four-line + ground
Rated input voltage	AC 380V/400V/415V
Voltage range	AC 208V~478V
Frequency range	45-55Hz at50Hz / 54-66Hz at60Hz (Auto)
Input power factor	≥0.99
Input current harmonic	≤3% (100% Nonlinear load)
Bypass range	Bypass protection voltage upper limit: 220V: +25% (Optional +10%, +15%, +25%)230V: +20% (Optional+ 10%, +15%)240V: +15% (Optional+10%)
	Bypass protection voltage lower limit: -45% (Optional -20%-30%)
	Bypass frequency protection range: ±10%
Outout
Output format	Three-phase four-line + ground
Rated output voltage	AC 380V / 400V / 415V
Output power factor	0.8 / 0.9
Output accuracy	±1%
Output frequency	Online mode: Follow the utility frequency; Battery Mode: 50/60Hz±0.2%
Output current harmonic	≤ 2% Linear Load ≤ 5% Nonlinear Load
Battery
Battery number	Optional: DC±192V/204V/216V/228V/240V (±16/17/18/19/20 pcs) default: DC±192V						7Ah*20	7Ah*20	9Ah*20	9Ah*20
Charging Current	10A max				20A max		4A max
Protection
Overload protection	Load 110%, 60min; ≤ 125%, 10min; ≤ 150%, 1min; ≥ 150% Transfer to bypass immediately
Over Temperature Protection	Normal mode: switch to bypass mode; battery mode: shut down output immediately
Emergency shutdown (EPO)	Shut down output immediately
Maintenance bypass	Standard maintenance bypass switch
Other
Switching time	Utility mode to bypass mode: 0ms; utility mode to battery mode: 0ms
Normal mode (full load)	≥efficiency 94.5%
Communication interface	RS232,RS485,SNMP Card (optional), electric relay card (optional)
Energy Saving Mode (ECO)	Support
Self-check function	Support
Parallel function	Support up to 4 units in parallel
Executive standard	YD/T1095-2018
Operating Environment
Operating temperature	0~40℃
Storage temperature	-25~55℃ (batteries: 0~40℃ )
Operating environment humidity	0%~95% (no condensation)
Altitude	< 1500m, when above 1500m, when above 1500m, derate according to GB/T 3859.2
Physical characteristi
Size (DWH) (mm)	690250734				775335978
Net Weight (kg)	50	50	51	52	89	90	164	1665	166	167
